Playing A Tune

Introduction

OK - the buzzer can be used to play a tune. This page shows how to do that.

You Will Need

  • 1 x Piezo Element
  • Jumper Wires

Making The Circuit

This is a pretty simple circuit to set up. The piezo buzzer has a marking on the underside showing which of the pins is positive.

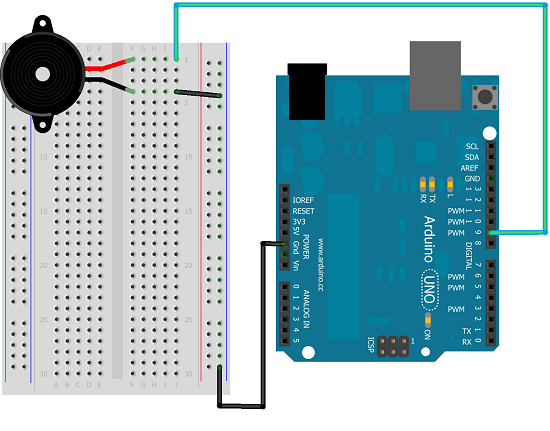

Arduino Circuit Diagram

Programming The Arduino

// constants for notes - C4 is middle C.
const int n_C3=131;
const int n_CS3=139;
const int n_D3=147;
const int n_DS3=156;
const int n_E3=165;
const int n_F3=175;
const int n_FS3=185;
const int n_G3=196;
const int n_GS3=208;
const int n_A3=220;
const int n_AS3=233;
const int n_B3=247;
const int n_C4=262;
const int n_CS4=277;
const int n_D4=294;
const int n_DS4=311;
const int n_E4=330;
const int n_F4=349;
const int n_FS4=370;
const int n_G4=392;
const int n_GS4=415;
const int n_A4=440;
const int n_AS4=466;
const int n_B4=494;
const int n_C5=523;
const int n_CS5=554;
const int n_D5=587;
const int n_DS5=622;
const int n_E5=659;
const int n_F5=698;
const int n_FS5=740;
const int n_G5=784;
const int n_GS5=831;
const int n_A5=880;
const int n_AS5=932;
const int n_B5=988;
const int n_C6=1047;
const int n_CS6=1109;
const int n_D6=1175;
const int n_DS6=1245;
const int n_E6=1319;
const int n_F6=1397;
const int n_FS6=1480;
const int n_G6=1568;
const int n_GS6=1661;
const int n_A6=1760;
const int n_AS6=1865;
const int n_B6=1976;

const int rest = 0;
const int buzzerPin = 9;
int tempo = 150;



int tune[] = {n_C4, n_C4, n_G4, n_G4, n_A4, n_A4, n_G4, n_F4, n_F4, n_E4, n_E4, n_D4, n_D4, n_C4};
int beats[] = { 1, 1, 1, 1, 1, 1, 2, 1, 1, 1, 1, 1, 1, 2 };
int tunelength = 14;

void setup()
{
  pinMode(buzzerPin, OUTPUT);

}

void loop()
{
  for (int i =0;i<tunelength;i++)
  {
    if (tune[i]==rest)
    {
      delay(beats[i]*tempo);
    }
    else
    {
      tone(buzzerPin, tune[i], beats[i]*tempo);
      delay(beats[i]*tempo);
    }
    delay(tempo/10);
  }
while(true){}
}

The large number of lines at the beginning of the code define the frequencies of different notes. n_C4 is middle C - you have a few octaves either side of that to play with. The song is defined in 3 variables. The first is an array of the notes. That is matched with the beats for each note. The numbers you use depend on the tune you play and the mixture of note lengths it has. You also have a variable defining the length of the tune.

With a bit of patience, you can encode a longer tune - replace the 3 lines defining the tune above with the following three for a go on something a little more interesting,

int tune[] = {n_FS4, n_G4, n_A4, n_B4, n_A4, n_B4, n_E5, n_D5, n_B4, n_A4, n_G4, n_E4, n_G4, n_B4, n_C5, n_D5, n_E5, n_D5, n_B4, n_G4, n_B4, n_A4, rest, n_FS4, n_G4, n_A4, n_B4, n_A4, n_B4, n_E5, n_D5, n_B4, n_A4, n_G4, n_E4, n_FS4, n_G4, n_A4, n_B4, n_C5, n_B4, n_A4, n_G4, n_A4, n_G4, rest, n_D5, n_E5, n_FS5, n_G5, n_FS5, n_FS5, n_E5, n_D5, n_E5, n_D5, n_B4, n_G4,n_D5, n_E5, n_FS5, n_G5, n_FS5, n_FS5, n_E5, n_D5, n_B4, n_A4, rest, n_D5, n_D5, n_D5, n_B5, n_A5, n_A5, n_G5, n_E5, n_G5, n_D5, n_B4, n_G4, n_FS4, n_G4, n_A4, n_B4, n_E5, n_D5, n_B4, n_A4, n_G4, n_E4, n_FS4, n_G4, rest};
int beats[] = {1, 1, 1, 3, 1, 1, 1, 1, 1, 1, 1, 3, 1, 1, 1, 3, 1, 1, 1, 1, 1, 4, 1, 1, 1, 1, 3, 1, 1, 1, 1, 1, 1, 1, 3, 1, 1, 1, 3, 1, 1, 1, 1, 1, 4, 1, 1, 1, 1, 3, 1, 1, 1, 1, 1, 1, 1, 3, 1, 1, 1, 3, 1, 1, 1, 1, 1, 4, 1, 1, 1, 1, 3, 1, 1, 1, 1, 1, 1, 1, 3, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 4, 1};
int tunelength = 94;
